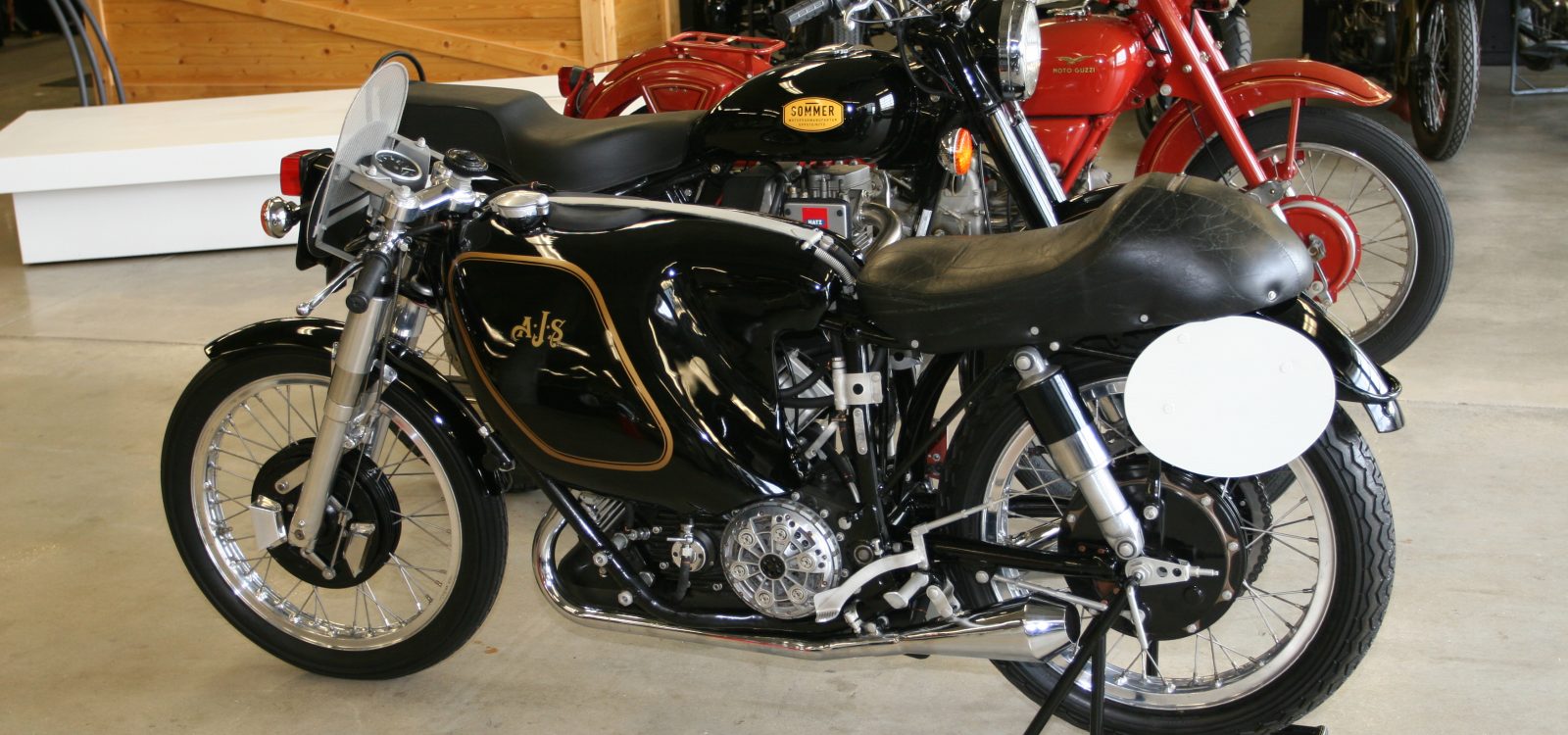

1954 AJS e95"Porcupine"

View Our Collection

2009 Pebble Beach Concours d’Elegance First in Class Winner

Introduced in 1952, the E95 was a much-redesigned version of the E90 horizontal twin, which was known as the Porcupine due to the spiky finning on the cylinder head. The original design was drawn pre-WWII when supercharging was legal. When racing resumed in the 40s, supercharging was banned and the Porcupine was uncompetitive. With the redesign, cylinders were given a 45° angle to shorten the wheelbase to improve handling. While fast, the machines were not reliable, and in 1954 were abandoned in favor of the G45 twin, a race version of the G9 street bike.

Specifications

  • Engine: 498cc air-cooled DOHC parallel twin with cylinders at 45 degrees, 68mm x 68.5mm bore and stroke, 9:1 compression ratio, 54hp @ 7,800rpm (est.)

  • Top Speed: 143mph (Isle of Man, 1964)
  • Carburetion: Two 1-1/8-inch Amal GP
  • Transmission: 4-speed, right foot shift, chain final drive
  • Electrics: Lucas magneto ignition
  • Frame/Wheelbase: Dual-downtube steel cradle/56.5in (1,435mm)
  • Suspension: AMC Teledraulic telescopic forks front, dual AMC Jampot shocks rear
  • Brakes: 8in (203mm) TLS drum front, 8in (203mm) SLS drum rear
  • Tires: 3 x 19in front, 3.50 x 19in rear
  • Weight (dry): 335lb (152kg)
  • Seat Height: 28in (711mm)
  • Fuel Capacity: 6.5gal (19ltr)
